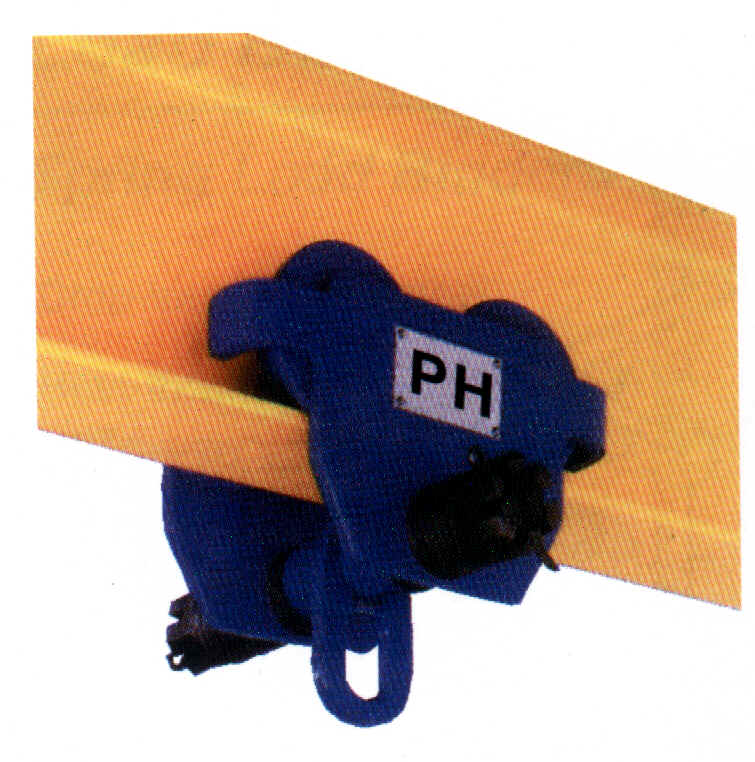

PH PLAIN AND GEARED TROLLEY

Doubled sealed ball bearings.
Built-in bumper guards.
Adjustable to fit various sizes of flanges and I beams.
Can be installed or removed at any point along track.

Plain Trolley 0.5-10 TON

Model

Capacity

Beam

Flange

Width

Dimension (mm)

Net

Weight

PT05

PT10

PT20

PT30

PT50

PT100


(Ton)
0.5
1
2
3
5
10


(mm)
64-140
64-140
76-165
76-203
88-203
125-203

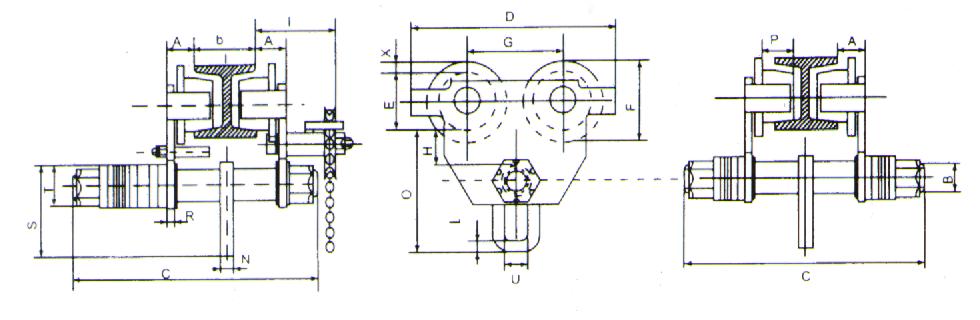

O	A	B	C	D	E	F	G	H	T	R	S	L	X	P	N	U
		dia			dia				dia
128	22	24	230	212	58	85	28	102	44	6	95	15	12	26	10	24
143	25	30	254	255	75	102	118	25	50	8	118	15	13.5	28	12	30.5
172	27	36	294	302	90	122	137	27	60	10	145	20	16	34	14	36
212	31	42	344	344	110	142	157	32	78	12	180	26	16	38	16	45
254	36	48	360	378	122	156	172	34	90	16	220	35	17	44	20	60
320	46	60	403	445	151	188	200	35	94	25	285	45	18	48	25	82


( kg )
8.5
13.5
22
40
50
90

Geared Trolley 0.5-20 TON

Model

Capacity

Beam

Flange

Width

Dimension (mm)

Net

Weight

GT05

GT10

GT20

GT30

GT50

GT100

GT200


( Ton )
0.5
1
2
3
5
10
20


(mm)
64-140
64-140
76-165
76-203
88-203
125-203
144-203

O	A	B	C	D	E	F	G	H	T	R	S	L	X	P	N	U	I
		dia			dia				dia
128	22	24	230	212	58	85	28	102	44	6	95	15	12	26	10	24	113.5
143	25	30	254	255	75	102	118	25	50	8	118	15	13.5	28	12	30.5	112.5
172	27	36	294	302	90	122	137	27	60	10	145	20	16	34	14	36	112.5
212	31	42	344	344	110	142	157	32	78	12	180	26	16	38	16	45	135
254	36	48	360	378	122	156	172	34	90	16	220	35	17	44	20	60	136
320	46	60	403	445	151	188	200	35	94	25	285	45	18	48	25	82	160
385	68	60	475	642	200	274	300	55	94	30	302	70	37	60	35	110	151.5


(kg)
12
19
28
47
58
98
185
